Panel Mount Connectors

Series M8 | Panel Mount Connectors M8

Panel mount receptacles, with threaded joint M8 according to IEC 61076-2-104, IP67, for front or rear side mounting, with stranded wires or for printed circuit boards

RoHS/REACH

No product found with this configuration.

0831 ... T10CP

M8 panel mount connector, male, A-coded, IP67, for rear side mounting, thread M10, with nut, for printed circuit boards

0832 ...S9 T8CP

M8 panel mount connector, male, angled version, A-coded, IP67, for rear side mounting, thread M8, with shielding contact and nut, for printed circuit boards

0830 ... T8CW ...

M8 panel mount connector, male, A-coded, IP67, for front mounting, thread M8, with nut and stranded wires

New

0830 ...B T8CW ...

M8 panel mount connector, male, B-coded, IP67, for front mounting, thread M8, with nut and stranded wires

New

0831 ... T8CW ...

M8 panel mount connector, male, A-coded, IP67, for rear side mounting, thread M8, with nut and stranded wires

0821 ... T10CP

M8 panel mount connector, female, A-coded, IP67, for rear side mounting, thread M10, with nut, for printed circuit boards

0822 ...S9 T8CP

M8 panel mount connector, angled version, female, A-coded, IP67, for rear side mounting, thread M8, with shielding contact and nut, for printed circuit boards

0820 ... T8CW ...

M8 panel mount connector, female, A-coded, IP67, for front mounting, thread M8, with nut and stranded wires

Series M12 | Panel Mount Connectors M12

Panel mount receptacles, with threaded joint M12 according to IEC 61076-2-101 and IEC 61076-2-111, IP67, wide range of variants, for front or rear side mounting, with stranded wires or for printed circuit boards; sensor inserts

RoHS/REACH

No product found with this configuration.

1239 ... T0CB

M12 insert connector, male, A-coded, IP67, with solder cups

1231 ... T9CP

M12 panel mount connector, male, A-coded, IP67, for rear side mounting, thread PG9, with nut, for printed circuit boards

New

1231 ...B T9CP

M12 panel mount connector, male, B-coded, IP67, for rear side mounting, thread PG9, with nut, for printed circuit boards

1230 ... T16CW ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires

New

1230 ... TF1CW004 ...

M12 flange panel mount connector, male, A-coded, IP67, for front mounting, with mountable contact insert and stranded wires

1230 ... T16CW100 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, black

1230 ... T16CW101 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, white

1230 ... T16CW102 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, yellow

1230 ... T16CW103 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, red

1230 ... T16CW104 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, blue

1230 ... T16CW105 ...

M12 panel mount connector, male, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires, with plastic housing, green

1230 ...L T16CW ...

M12 Power panel mount connector, male, L-coded, IP67, for front mounting, thread M16, with nut and stranded wires

1231 ... T16CW100 ...

M12 panel mount connector, male, A-coded, IP67, for rear side mounting, thread M16, with nut and stranded wires, with plastic housing, black

1221 ... T9CP

M12 panel mount connector, female, A-coded, IP67, for rear side mounting, thread PG9, with nut, for printed circuit boards

New

1221 ...B T9CP

M12 panel mount connector, female, B-coded, IP67, for rear side mounting, thread PG9, with nut, for printed circuit boards

New

1221 ...D T9CP

M12 panel mount connector, female, D-coded, Industrial Ethernet, IP67, for rear side mounting, thread PG9, with nut, for printed circuit boards

1220 ... T16CW ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M16, with nut and stranded wires

1220 ... T20CW100 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, black

1220 ... T20CW101 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, white

1220 ... T20CW102 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, yellow

1220 ... T20CW103 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, red

1220 ... T20CW104 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, blue

1220 ... T20CW105 ...

M12 panel mount connector, female, A-coded, IP67, for front mounting, thread M20, with nut and stranded wires, with plastic housing, green

New

1220 ...D T16CW ...

M12 panel mount connector, female, D-coded, Industrial Ethernet, IP67, for front mounting, thread M16, with nut and stranded wires

1220 ...L T16CW ...

M12 Power panel mount connector, female, L-coded, IP67, for front mounting, thread M16, with nut and stranded wires

1221 ... T16CW100 ...

M12 panel mount connector, female, A-coded, IP67, for rear side mounting, thread M16, with nut and stranded wires, with plastic housing, black

Series 7/8" | Panel Mount Connectors 7/8"

Panel mount receptacles, with threaded joint 7/8", IP67, for front mounting, with stranded wires

RoHS/REACH

No product found with this configuration.

7830 ... T13CW ...

7/8" panel mount connector, male, with threaded joint, A-coded, IP67, for front mounting, thread PG13.5, with nut and stranded wires

7820 ... T13CW ...

7/8" panel mount connector, female, with threaded joint, A-coded, IP67, for front mounting, thread PG13.5, with nut and stranded wires

Series 02 | Panel Mount Connectors Quicklock

Circular power connectors with Quicklock mechanism, 2–12 poles, four design sizes. Protection degree IP67. For signal and load currents up to 50 A.

Cross Reference RoHS/REACH

No product found with this configuration.

2320 ... T12CB100

Quicklock chassis socket, IP67, size 12, straight version, with plastic housing, solder terminals and protecting cap (IP65)

2430 ... T18CB100

Quicklock chassis plug, IP67, size 16, straight version, with plastic housing, solder terminals and protecting cap (IP65)

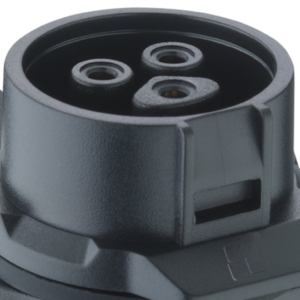

2420 ... T18CB100

Quicklock chassis socket, IP67, size 16, straight version, with plastic housing, solder terminals and protecting cap (IP65)

2630 ... T22CB100

Quicklock chassis plug, IP67, size 20, straight version, with plastic housing, solder terminals and protecting cap (IP65)

2620 ... T22CB100

Quicklock chassis socket, IP67, size 20, straight version, with plastic housing, solder terminals and protecting cap (IP65)

2830 ... TF1C...

Quicklock flange chassis plug, IP67, size 28, straight version, with metal housing, screw clamps and protecting cap (IP65)

2820 ... TF1C...

Quicklock flange chassis socket, IP67, size 28, straight version, with metal housing, screw clamps (8-pole version with solder terminals) and protecting cap (IP65)
